Energy compensated high dose gamma Geiger-Muller tube
Reduced volume and gas mix for lower sensitivity to prevent overload in high flux. Combined with energy compensation for ambient or effective dose measurements.
Halogen quenched gamma radiation counter tubes
Flat energy response over the range 50keV to 1.25MeV
Energy compensated high dose gamma Geiger-Muller tube
Contact sales or request a quote
Contact usTechnical Information

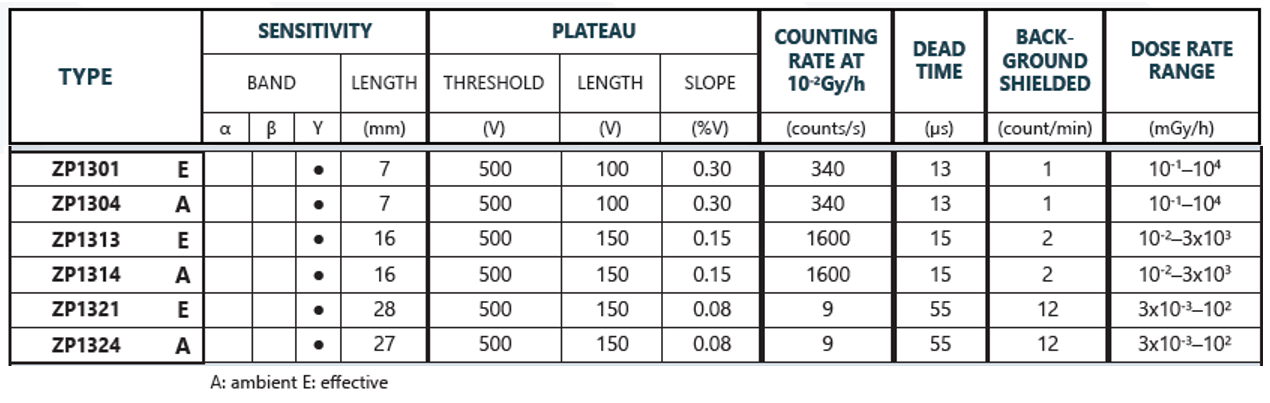

High Dose Gamma
| Type | Band | Sensitivity | Length (mm) | Threshold (V) | Plateau | Counting Rate at 10−2 Gy/h (counts/s) | Dead Time (µs) | Background Shielded (count/min) | Dose Rate Range (mGy/h) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| α | β | γ | Length (V) | Slope (%V) | ||||||||
| ZP1301 | E | ● | 7 | 500 | 100 | 0.3 | 340 | 13 | 1 | 10−1 – 104 | ||
| ZP1304 | A | ● | 7 | 500 | 100 | 0.3 | 340 | 13 | 1 | 10−1 – 104 | ||
| ZP1313 | E | ● | 16 | 500 | 150 | 0.15 | 1600 | 15 | 2 | 10−2 – 3 × 103 | ||
| ZP1314 | A | ● | 16 | 500 | 150 | 0.15 | 1600 | 15 | 2 | 10−2 – 3 × 103 | ||
| ZP1321 | E | ● | 28 | 500 | 150 | 0.08 | 6500 | 55 | 12 | 3 × 10−3 – 102 | ||
| ZP1324 | A | ● | 27 | 500 | 150 | 0.08 | 6500 | 55 | 12 | 3 × 10−3 – 102 | ||
