Exosens product brand
Micro NoxCore ultra compact swap mwir camera cores

MicroNoxCore

High Performance Infrared Cameras Cores made in France

MicroNoxCore ultra compact swap mwir camera cores is the smallest and lightest part of the NoxCore Vision family. Perfectly suited for integration into small UAV or robot payloads.

Select your ideal configuration

Read more
Ultra compact camera core
Crystal clear image with advanced video processing
Standard interfaces for seamless integration
Made in France

MicroNoxCore

Contact sales or request a quote

Contact us

Work with our experts to define your optimal configuration

No two integration projects are alike. The ideal setup depends on your exact specifications: observation range, available volume, power autonomy, or the need for seamless integration with a mission or system computer.

That’s why we’re by your side from the beginning, guiding you in choosing the most suitable configuration for your technical and operational needs.

Our team of specialists will give you all the clear, practical insights you need to evaluate the right technologies, interfaces, communication protocols, and image processing options. We’ll help streamline your development and recommend adjustments to ensure smooth and successful integration of your advanced infrared imaging system.

Let’s design the perfect solution together. Contact us today to define the configuration that will meet your mission requirements.

Get personalized guidance

Description

MicroNoxCore is the smallest and lightest part of the NoxCore Vision family.

NoxCore Vision are thermal vision modules based on the NoxEngine Technology. They include all the features required for surveillance applications (Site monitoring, Traffic surveillance, Pollutant search, etc.).

Equipped with the latest generation of thermal detector, cooled by stirling engine, MicroNoxCore  cores offer extreme performance in a reduced footprint and energy consumption.

The Noxant team is dedicated to provide you with in-depth assistance for the optimal integration of NoxCore Vision in your system, and trains your team to get the maximum out of the NoxEngine technology.

We only present general information in our product pages. Enumerating all the possibilities would make reading tedious. In addition, your project is definitely unique. It is important that we discuss it together, don’t hesitate to contact us.

MicroNoxCore is part of NoxCore Family. Check other type of configurations available.

Micro NoxCore ultra compact swap mwir camera cores Micro NoxCore ultra compact swap mwir camera cores Micro NoxCore ultra compact swap mwir camera cores

Technical Information

VIDEO AND CONTROL INTERFACES
  • Video Output Format :
    - Color HDMI 720p with color overlay
    - Optional SDI
  • Video Streaming :
    - h.264 : RTSP or UDP
    - RAW : GigEVision
  • Control :
    - RS232 or Ethernet IP
DETECTOR
  • Cooled, snapshot FPA
  • Spectral Range : MWIR – 3μm to 5μm
  • Matrix size : 640 x 512 pixels
  • Pitch 15μm
  • Optical aperture f/5.5
  • Cooling by Rotary Stirling
  • Cooldown Time @20°C <6min
PHYSICAL AND ENVIRONMENT SPECIFICATIONS
  • <20W in steady operation
  • Operating Temperature Range : -30°C to +60°C
  • Storage Temperature Range : -40°C to +70°C
  • Vibration : Operational 2g, IEC 68-2-29
  • Shock : Operational 25g, IEC 68-2-26
Play

Micro NoxCore ultra compact swap mwir camera cores

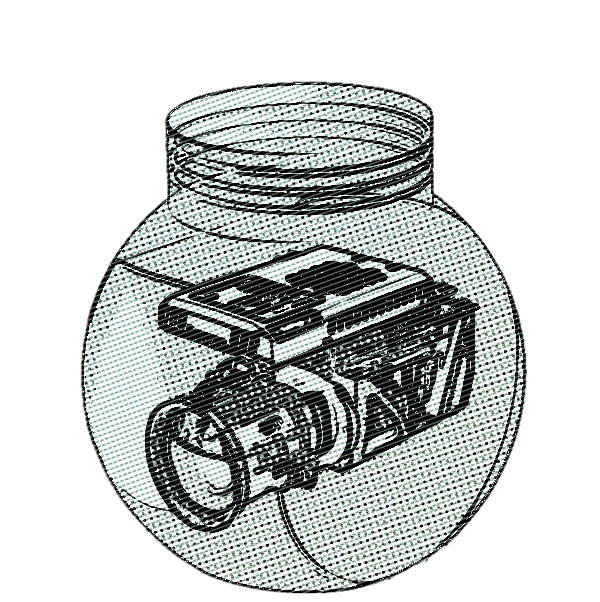

Micro NoxCore integration example

Micro NoxCore integration example
