NoxCore LW
NoxCore LW long wave infrared camera cores for infrastructure inspection is a perfect combinaison of technologies from both surveillance and radiometry worlds.
NoxCore LW
Contact sales or request a quote
Contact usSelect your ideal configuration together with our experts
Each integration project is unique, and many configurations are available depending on your specific requirements, distance to the observed scene, available integration volume, autonomous use, or the need to interface with the mission or system computer.
That's why our team supports you from the very first steps, helping you define the setup that best fits your technical and operational needs.
Our team of experts will provide you with the necessary factual information to understand and choose among different technologies, interfaces, protocols, and image processing features. They will help you optimize your development efforts or suggest modifications to ensure the successful integration of your high-performance infrared cameras.
To benefit from personalized guidance and design the ideal solution for your application, get in touch with us. We'll determine together the right configuration for your mission.
Description

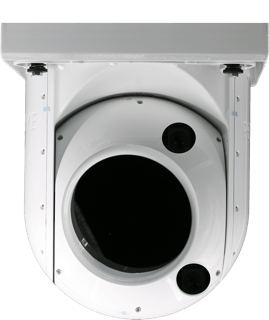

NoxCore LW series is a perfect combinaison of technologies from both surveillance and radiometry worlds. Based on latest generation of NoxEngine Technology, NoxCore LW models provide unmatched performance together with seamless integration effort.
NoxCore LW series is dedicated to large linear infrastructures inspections applications such as power lines, pipe lines, bridges, railways,…
Equipped with the latest generation of thermal detector, cooled by stirling engine, NoxCore LW cores offer excellent performance in a reduced footprint and energy consumption.
We only present general information in our product pages. Enumerating all the possibilities would make reading tedious. In addition, your project is definitely unique. It is important that we discuss it together, don’t hesitate to contact us.
NoxCore LW is part of NoxCore Family. Check other type of configurations available.
Technical Information
- Video Output Format :
- Color HDMI 720p with color overlay
- Optional SDI or Analog - Video Streaming :
- h.264 : RTSP or UDP
- RAW : GigEVision - Control :
- RS232 or Ethernet IP
- Cooled, snapshot FPA
- Spectral Range : LWIR – 7.7μm to 9μm
- Matrix size : 640 x 512 pixels
- Pitch 15μm
- Cooling by Rotary Stirling
- Cooldown Time @20°C <8min
- <20W in steady operation
- Operating Temperature Range : -20°C to +50°C
- Storage Temperature Range : -40°C to +70°C
- Vibration : Operational 2g, IEC 68-2-29
- Shock : Operational 25g, IEC 68-2-26
PowerLine Inspection with NoxCore 180LW
NoxCore LW integration example
